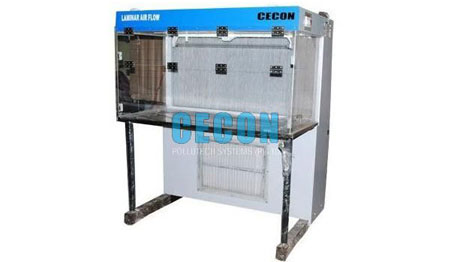

Cecon high efficiency Laminar Air Flow System to meet the requirements of US Federal Standard 209B providing particle free air to meet class 100 (class conditions).
The cabinets are fabricated out of thick board duly sunmica clad. Interior surface are epoxy painted for its linger life. The worktable is made of laminated Board/S.S. with whitenylon coated option. Side panels are made out of thick transparent plexi glass for visibility and duly framed for safety. Automatic Speed compensation for increasing filters resistance. The unit is fitted with pre-filter and is made to pass through highly effective HEPA filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air borne particle size 0.3 micron and larger. The blower and motor assembly is statically & dynamically balanced operate with minimum vibration and noise level. The working area is illuminated by fluorescent lighting with optional U.V. Tube for germicidal effects and Manometer. Operative on 220/230 v, 50 Hz. AC supply.
⁕ Research Centre
⁕ Pathology Labs
⁕ Pharmaceutical Industries
⁕ Hospitals/Nursing Homes
Model | Working Size | Type |
CLF – 022 | 2′ x 2′ x 2′ | Horizontal / Vertical |
CLF – 032 | 3′ x 2′ x 2′ | Horizontal / Vertical |
CLF – 033 | 3′ x 3′ x 2′ | Horizontal / Vertical |
CLF – 042 | 4′ x 2′ x 2′ | Horizontal / Vertical |
CLF – 062 | 6′ x 2′ x 2′ | Horizontal / Vertical |
CLF – 082 | 8′ x 2′ x 2′ | Horizontal / Vertical |
